AUTO WEIGHTING PACKING & ROBOT PALLETIZING SYSTEM

Production information

Introducing the auto weighting packing & robot palletizing system. It is combines from two units, auto weighting packing, and transporting palletizing. The system connected after the compound extruding machine. High efficiency and lowing the operator burden.

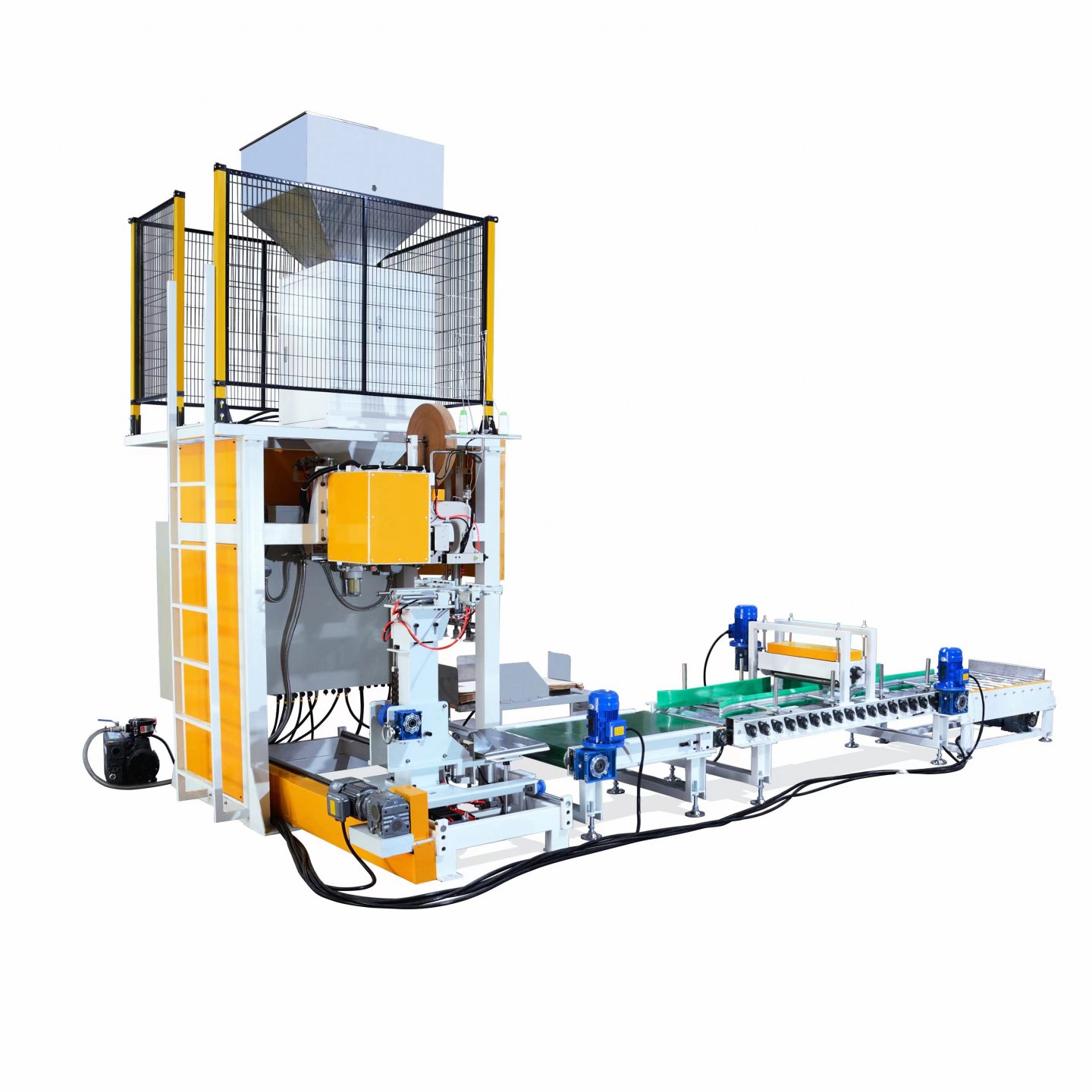

Auto weighting & packing system

  1.  Components: bag storage, bag grabbing system, auto open and hanger, auto weighting system, auto hemming and palletizing system, PLC control system.
  2. All bags movement control by vacuum and air cylinder system.
  3. Auto weighting: combined with frame, hopper material tank, control valves(twin), weighting scales and unload valve.
  4. Weighting range: 10-30kg, accuracy: ±0.1% F.S, capacity: 25KG/bag, 140-160 bags/hr.
  5. Bag type: M type kraft paper bag or PE bag, size:850mm * 450mm.
  6. All material touching surface are built with SUS304 stainless steel, equipped with (ETTLER-TOLEDO) scales, (AIRTEC) cylinder components.
  7. Bag closer (sewing machine): Newlong DS-9C.
  8. Dimension: 2750×2450×2850mm Weight:1500Kg
​        Note: Platform, midterm storage and loading equipment are not included.



PALLETIZING ROBOT SYSTEM


  1.  ROBOT ARM:
    BRAND：BORUNTE，origin: China
    MODEL：BRTIRPZ3013A（capacity 130KG）
    Other brand or model are available (optional, price depends on model)
  2. ROBOT BASEMENT:
    Fit with ROBOT arm dimension，height 500mm；welded with 25mm iron plate. The basement is designed to hold the robot arm, and to fixed the robot arm position.
  3. GRABING HAND:
    Combined with vacuum, Aluminum alloy frame, grabbing parts, and air cylinder, designed to install on robot arm for executing the grabbing movement.
  4. CONTROL LINE :
    Combined with frame, reducer, rollers, sensor, and inverter. Frame welded by 80*80*4mm tube, painting with white color.
  5. BELT CONVEYOR:
    Frame welded by 80*80*4mm tube, painting with white color, 4mm thickness PVC convert belt, wide 500mm, can be horizon or inclined and convert bags to sealed and shaping machine.
    Driven motor: 1.5kw reducer with AC inverter.
  6. 1.5M SHAPING MACHINE:
    Install after the belt conveyor, designed to make material bags flat and nice shape, easy to palletizing.
    Frame welded by 80*80*4mm tube.
    Shaping roller made by 80*80*3mm stainless tube, wide 500mm.
  7. CONTROL UNIT:
    Electric: Schneider Electric with remote control, Deyan provide software and adjustment.
